Air-Cooled Lower Speed Centrifuge LM500S 100-6000rpm

Booking:793

The Air-Cooled Lower Speed Centrifuge LM500S with wide option of swing rotors and adapters for 5ml blood collection tube. 3/5/7ML 10/15ml,50ml,100ml centrifuge tubes and microplate,deep well plate. Angle rotor for 10/15ml, 50ml. 100-6000rpm,Max.RCF 5150×g/step increase10×g,Timing control 1-99hrs or 1-59min or 1-59sec. 5 inch LCD bright white words on black background. Real-time display of speed up and down. It is more convenient for fast adjustment which fully meets various centrifugal needs. Instantaneous centrifugal,(flash)button which can be centrifuged faster. Automatically record the last experimental value. 【QUALITY CERTIFICATE】ISO 13485 quality system and CE certificate to sure the quality.

Inquire
  • Specifications



LM500S

Product introduction



M500S low speed centrifuge which functions are powerful, highly commonality and handy for operation.The centrifuge which use the latest controller system which will be reliable quality and superior performance. It widely used in Medical clinical biochemistry, hematology, immunology, clinical research,molecular biology research and routine analysis in industrial laboratories. Also more pronounced in the geneticprotein nucleic acid and PCR field .


Advantage

1. Use the advanced and reliable Infineon vector sine wave drive control system. Accurate controlled the speed ,time and RCF.


2. 5 inch LCD bright white words on black backgroundsetting and operating parameters clearly in real time


3. Frequency conversion brushless motor without maintenance . control speed 100-6000rpm.±20rpm


4. Real-time display of speed up and down. It is more convenient for fast adjustment which fully meets various centrifugal needs


5. Single knob controlled can be fast changed parameter


6. The centrifuge have lid protection.excessive speed and imbalance detection system which can be real-time monitoring.ensure the centrifuge safe operation. when appear the imbalancesound signal reminder and stop operation at the same time, LED display show the error code.


7. Instantaneous centrifugal,flashbutton which can be centrifuged faster. Automatically record the last experimental value


8. Centrifuge speed and RCF step increase 10rpm/10×g


9. timing control 1-99hrs/1-99 minutes /1-59sec. Accuracy±1 seconds.


10. The master device and the rotor which use the high strength material to resist various chemical corrosion. It has nice sealing property and can be with high temperature sterilization

PTFE cover Stainless steel cavity and solid construction, suitable for continuous use


11. Forced ventilation cooling and excellent air heat exchange technology can significantly and effectively reduce the increase in the temperature of the rotor.

Automatic opened the lid when finish the operating ,The samples will not overheating and discharge the sample more convenient


12. The isolation layer outside the centrifugal cavity can fully absorb noise and reduce vibration.

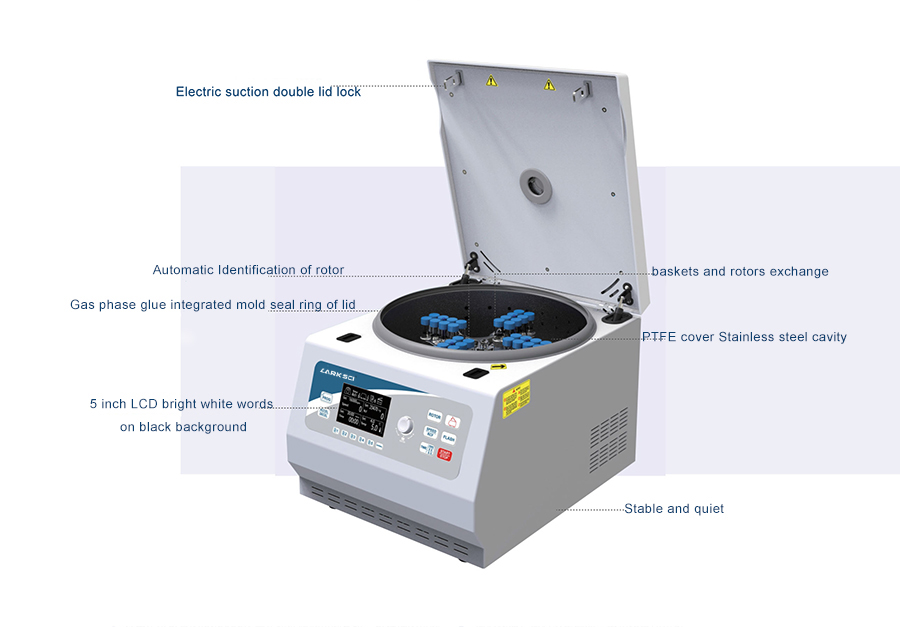

13. Electric suction double lid lock design,easy to opening and closing of the lid quickly. quiet and safe





Main machine Technical data



Part.No.

LM500S

Input voltage

AC120/220V  5060Hz

Input power[W]

450W

Max. Capacity[ml]

480ml(15ml×32)

Speed Range[r/min.]

100~6000rpm/step increase10rpm

Speed Accuracy

±20rpm

Max.RCF [×g]

5150×g/speed up 10×g

Motor

Maintenance-free brushless inverter motor

Timing Control

1-99hrs/1-59min/1-59secaccuracy±1sec

Drive control system

Infineon vector sine wave drive control system

Digital Display

5 inch LCD bright white words on black background

Operation method

multi touch+Physical button

Store program

10 built-in storage programs/5 panel shortcut program/equipped with NORAML button

Lid lock method

Electronic automatic suction double lock

Max.acceleration time[sec]/Speed up gear

30s/9gears

Max.Deceleration time[sec]/Speed down gear

25s/10gears0 gears free stop

Dimensions:D×W×H [mm]

418×516×338

Weight without rotor [Kg]

36

Noise level at max. speed(apprex)

65dB(A)

Protection class

IP20

Allowable ambient temperature/relative humidity

+5~40/80%

Interference suppression standard

EN 61010-1EN 61010-2-020EN 61326-1EN 61010-3-2/A2

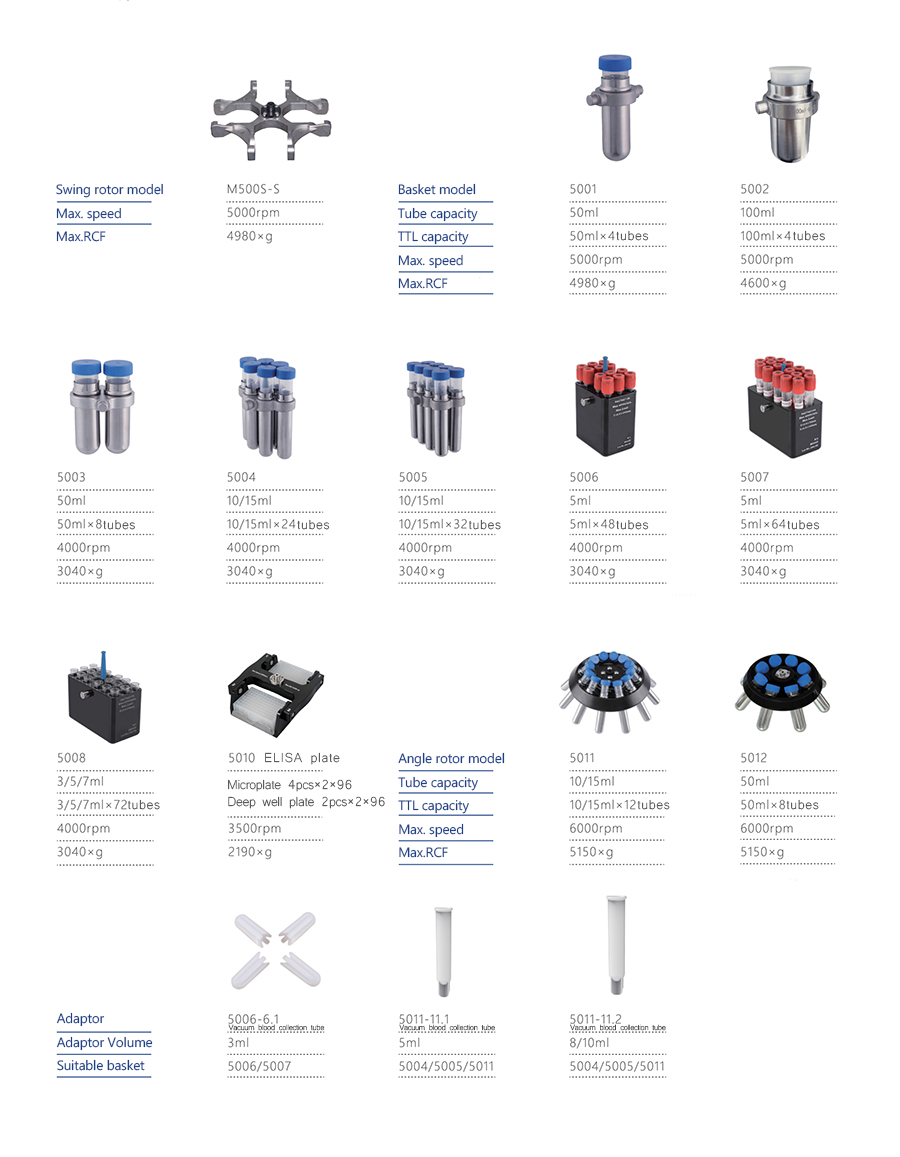

Swing rotor specification

Part.No.

Part Name

capacity  ML×No.

Max. Speed r/min.

Max. ×g

Tube specification

LM500S-S-1

5001

50×4

5000

4980

PP round/conical bottom with cap

LM500S-S-2

5002

100×4

5000

4600

PP round bottom with cap

LM500S-S-3

5003

50×8

4000

3040

PP round/conical bottom with cap

LM500S-S-4

5004

8/10/15×24

4000

3040

Blood collection tube/Urine Sediment tube/PP round/conical tube

LM500S-S-5

5005

8/10/15×32

4000

3040

Blood collection tube/Urine Sediment tube/PP round/conical tube

LM500S-S-6

5006

3/5×48

4000

3040

Blood collection tube

LM500S-S-7

5007

3/5×64

4000

3040

Blood collection tube

LM500S-S-8

5008

3/5/7×72

4000

3040

G Ria Vial

LM500R-S-10

5009

Microplate 4pcs×2×96

Deep well plate 2pcs×2×96

3500

2190

LM500R-A-11

5010

15×12

6000

5150

PP round/conical bottom with cap
