Air-Cooled Lower Speed Centrifuge LM400D Swing Rotor 100~6000rpm

Booking:792

The Air-Cooled Lower Speed Centrifuge LM400D with wide option of swing rotors and adapters for 5ml blood collection tube. 10/15ml,50ml,100ml centrifuge tubes and microplate,deep well plate. Angle rotor for 10/15ml. 100-6000rpm,Max.RCF 5150×g/step increase10×g,Timing control 1-99min or 1-59sec.Real-time display of speed up and down. It is more convenient for fast adjustment which fully meets various centrifugal needs.✦【QUALITY CERTIFICATE】ISO 13485 quality system and CE certificate to sure the quality.

Inquire
  • Specifications



M400D

Product Introduction



The M400D Air –Cooled lower speed centrifuge which the functions are powerful , highly commonality and handy for operation. The centrifuge use the latest controller system which will be reliable quality and superior performance. It widely used in medical laboratory ,industrial laboratory , biochemical and molecular biology researching .Also more pronounced in the genetic ,protein nucleic acid and PCR field .



 Advantage

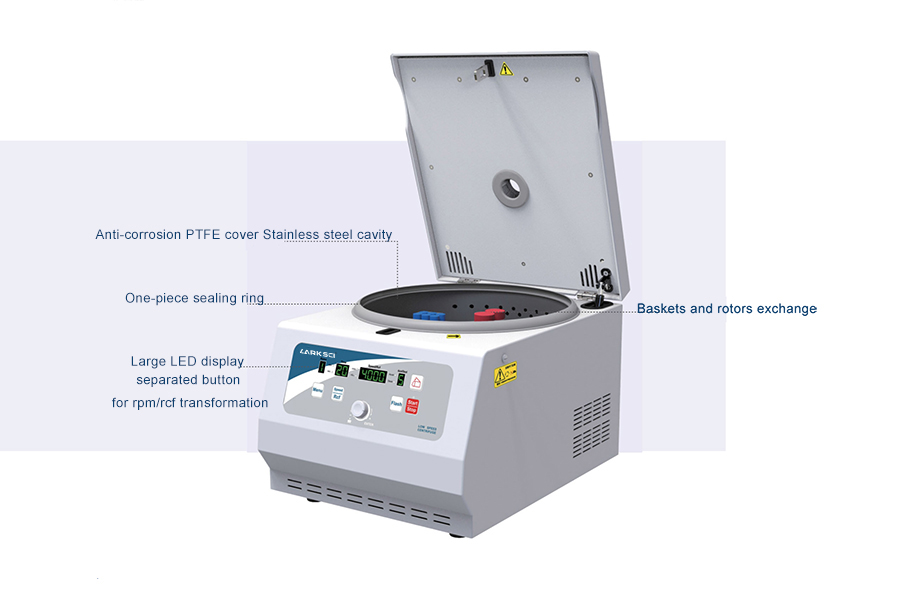

1. PTFE cover Stainless steel cavity and solid construction, suitable for continuous use, electronic lock, easy to open lid, automatic locking lid to ensure safety.



2. Large LED display showing which can be clear the operating parameter, separated button for rpm/rcf transformation . easy to adjust and check relative centrifugal force in real time



3. Real-time display of speed up and down. It is more convenient for fast adjustment which fully meets various centrifugal needs


4. Single knob controlled can be fast changed parameter



5. The isolation layer outside the centrifugal cavity can fully absorb noise and reduce vibration.



6. Equipped with advanced and reliable Infineon vector sine wave drive control system. Accurate controlled the speed ,time and RCF.



7. Frequency conversion brushless motor without maintenance . control speed 100-6000rpm.±15rpm



8. Centrifuge speed and RCF step increase 10rpm/10×g, timing control 1-99 minutes or 1-59sec. Accuracy±1 seconds. Instantaneous centrifugal, press the(flash)button which can be centrifuged faster. Automatically record the last experimental value



9. The master device and the rotor which use the high strength material to resist various chemical corrosion. It has nice sealing property and can be with high temperature sterilization



10. The centrifuge have lid protection.excessive speed and imbalance detection system which can be real-time monitoring.ensure the centrifuge safe operation. when appear the imbalance, sound signal reminder and stop operation at the same time, LED display show the error code.



11. Forced ventilation cooling and excellent air heat exchange technology can significantly and effectively reduce the increase in the temperature of the rotor.

Automatic opened the lid when finish the operating ,The samples will not overheating and discharge the sample more convenient


Main machine Technical data





Part.No.

LM400D

Input voltage

AC220V/5060Hz/AC120V

Input power[W]

350W

Max. Capacity[ml]

400(50ml×8/100ml×4)

Speed Range[r/min.]

100~6000/step increase10rpm

Speed Accuracy

±20rpm

Max.RCF[×g]

5150/step increase 10×g

Motor

Maintenance-free brushless inverter motor

Timing Control

1-99min/1-59secaccuracy±1sec

Drive control system

Infineon vector sine wave drive control system

Operation method

Physical button

Display

LED

Lid lock method

Mechanical pressing lock,electronically controlled open

Max.acceleration time[sec]/Speed up gear

30s/9gears

Max.Deceleration time[sec]/Speed down gear

25s/10gears0 gears for stop free

Dimensions:D×W×H

390×500×320

Weight without rotor [Kg]

30

Noise level at max. speed(apprex)

65dB(A)

Protection class

IP20

Allowable ambient temperature/relative humidity

+5~40/80%

Interference suppression standard

EN 61010-1EN 61010-2-020EN 61326-1EN 61010-3-2/A2

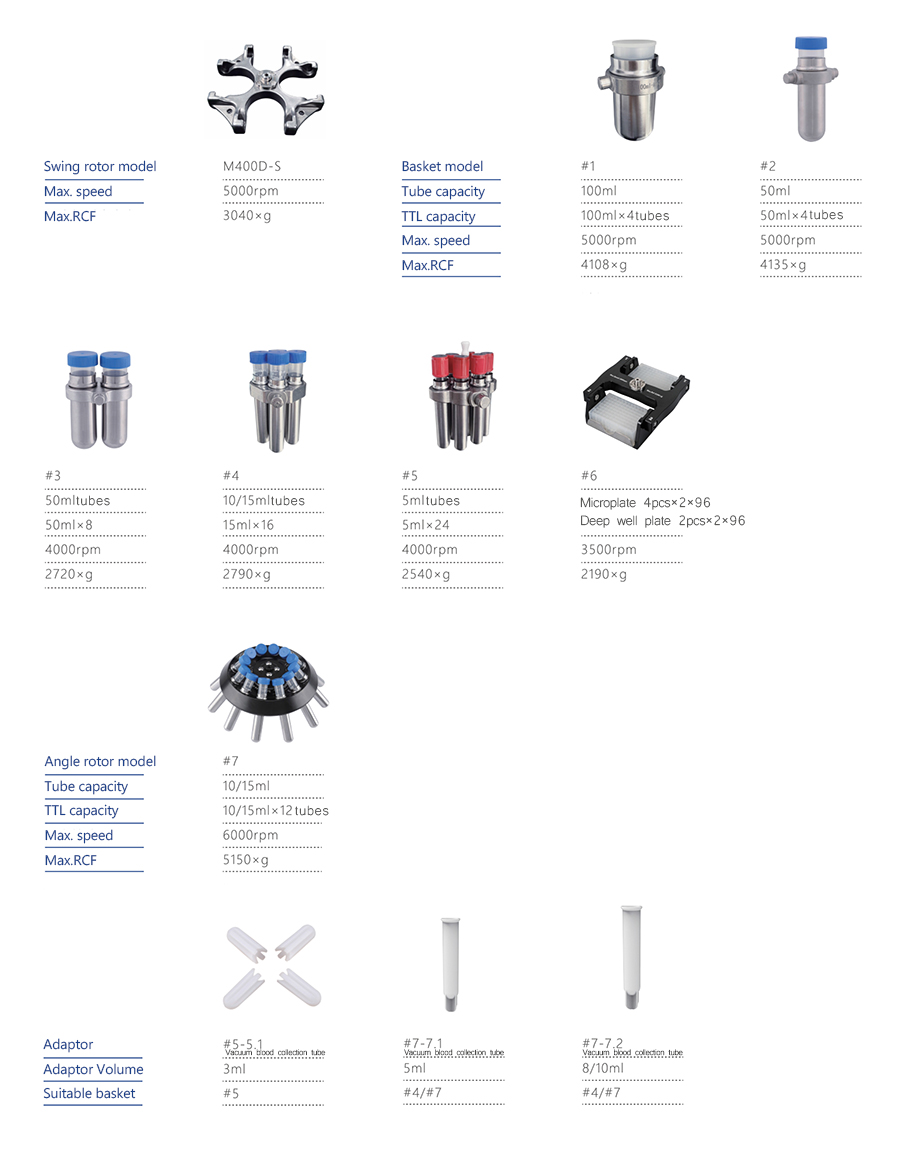

Rotor Technical data



Part.No.

Part Name

capacity ML×No.

Max. Speed r/min.

Max. RFC ×g

Tube specification

LM400D-S-1

#1

100ml×4

5000

4108

PP round bottom with cap

LM400D-S-2

#2

50ml×4

5000

4135

PP round/conical bottom with cap

LM400D-S-3

#3

50ml×8

4000

2720

PP round/conical bottom with cap

LM400D-S-4

#4

8/10ml×16

4000

2557

blood collection vacuum tube, round/conical bottom tube

LM400D-S-5

#5

15ml×16

4000

2790

PP round/conical bottom with cap

LM400D-S-6

#6

3/5ml×24

4000

2540

 blood collection  tube

LM400D-AP

#7

3/5ml×24

4000

2075

 blood collection  tube

LM400D-S-7

#8

Microplate 4pcs×2 sides×96wells

Deep well plate 2pcs×2sides×96wells

3500

2190



LM400D-A-8

#9

15ml×12

6000

5150
