High Speed Refrigerated Centrifuge LM16RS 100-16000rpm -12℃~+40℃

Booking:549

The Refrigerated Centrifuge LM16RS with wide option of rotors and adapters for 1.5/2ml,5ml,0.2ml,0.5ml centrifuge tubes and capillary tube. Max.RCF 23470×g/step increase10×g, temperature range:-12℃~+40℃,Fast pre-cooling function. It is widely used in medical laboratory, industrial laboratory, biochemical and molecular biology researching in the genetic,protein nucleic acid and PCR field. Imported refrigeration compressor unit/R134a Eco-friendly refrigerant. PID digit temperature control.The cooling effect is faster and more accurate. ✦【QUALITY CERTIFICATE】ISO 13485 quality system and CE certificate to sure the quality.

Inquire
  • Specifications


LM16RS high-speed refrigerated centrifuge


Product Introduction
Tabletop high-speed refrigerated centrifuge which functions are powerful, highly commonality
and handy for operation, The centrifuge which use the latest controller system which will be
reliable quality and superior performance . It widely used in medical laboratory, industrial
laboratory , biochemical and molecular biology researching . Also more pronounced in the
genetic 、 protein nucleic acid and PCR field . Various rotors optional to meet the application
requirements of daily experiments

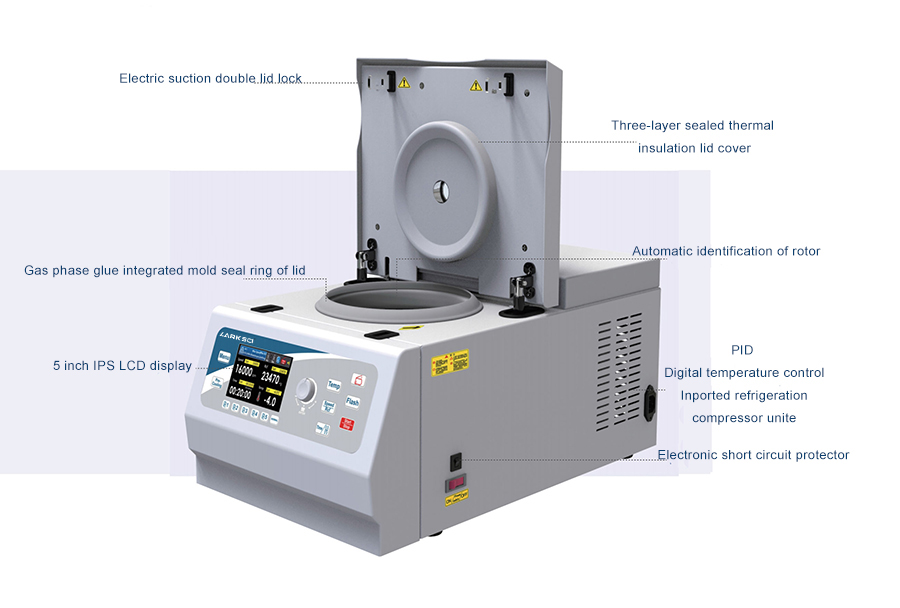

Advantage

1.Smaller footprint, save space in the laboratory

2.Wide option of rotors and adapters for all commonly used centrifuge tubes

3.Imported refrigeration compressor unit/R134a Eco-friendly refrigerant. PID digit temperature control.The cooling effect is faster and more accurate

4.Fast pre-cooling function with independent Pre-Cooling buttons on the panel It can reach 4℃ in a very short time at room temperature

5. auto-tuning temperature control function in different environments, no need human intervention

6.Automatic rotor recognition and unbalance detection to sure centrifugal safety

7.Separate Flask button for instantaneous centrifugal, Press to working

8.Electric suction double lid lock design,Quickly lid closed with one touch,quiet and safety

9.Double air rod support makes centrifuge lid opening and closing smoother,more lower opening height

10. 10 built-in storage programs/5 panel shortcut program, more convenient

11.PTFE cover Stainless steel centrifuge cavity which can resist corrosive samples centrifugal

12.The seal ring of lid cover is formed by an imported rubber integrated mold

13.5 inch IPS full view 16 million chroma true color LCD display. Brightness adjustable to meet health requirements

14.External USB2.0 interface is convenient for system upgrade and experimental data download

15.Built-in start timing and stable timing function which can effectively calculate the centrifugal efficiency

16.A variety of downtime music ringtones and duration of music and prompt tone can be adjusted. Make the experiment more comfortable

17.The display interface supports Chinese and English menu switching



Main machine Technical data

Part.No.

LM16RS

Input voltage

AC220V/5060Hz

Input power[W]

650W

Max. Capacity[ml]

50(5ml×10)

Speed Range[r/min.]

100~16000rpm/step increase10rpm

Speed Accuracy

±20rpm

Max.RCF [×g]

23470×g/step increase10×g

Static temperature setting range

-20~+40/step increase0.5/Display accuracy 0.1/control accuracy±2

Max.Load/Temperature control at Max. speed

-12~+40/Display accuracy 0.5/control accuracy±2

Motor

Maintenance-free brushless inverter motor

Timing Control

1-99hrs/1-59min/1-59secaccuracy±1sec

Drive control system

Infineon vector sine wave drive control system

Operation method

multi touch+Physical button

Display

5 inch IPS full view 16 million chroma true color LCD display/Resolution800×480dpi

Store program

10 built-in storage programs/5 panel shortcut program/equipped with NORAML button

Lid lock method

Electronic automatic suction double lock

Max.acceleration time[sec]/Speed up gear

18s/9gears

Max.Deceleration time[sec]/Speed down gear

20s/10gears0 gears free stop

Refrigeration Compressors/Refrigerant

Imported SECOP® with 3C certificate/R134a

Dimensions:D×W×H

360×600×280

Weight without rotor [Kg]

47

Noise level at max. speed(apprex)

58dB(A)

Protection class

IP20

Allowable ambient temperature/relative humidity

+5~40/80%

Interference suppression standard

EN 61010-1EN 61010-2-020EN 61326-1EN 61010-3-2/A2

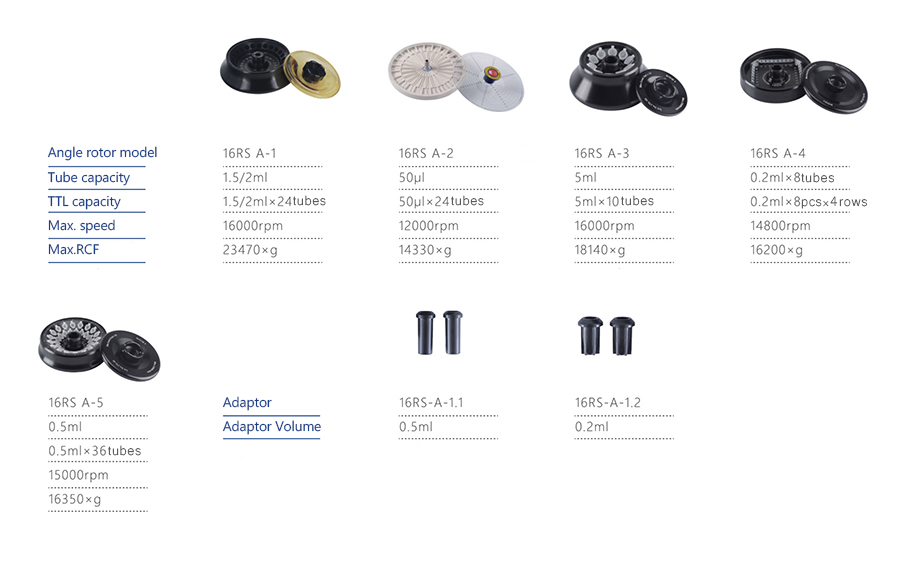

Rotor Technical data

Part.No.

Part Name

capacity ML×No.

Max. Speed r/min.

Max. RFC ×g

Tube specification

LM16RS-A-1

A-1

1.5/2.2ml×24

16000

23470

PP conical bottom with cap

LM16RS-A-2

A-2

50µl×24

12000

14330

Capillary tubeΦ1.5mm×L75mm

LM16RS-A-3

A-3

5ml×10

16000

18140

PP round bottom with cap

LM16RS-A-4

A-4

PCR Rotor 0.2×8×4

14800

16200

PP conical bottom with cap

LM16RS-A-5

A-5

0.5ml×36

15000

16350

PP conical bottom with cap
