High Speed Centrifuge LM15G 200-~15000rpm

Booking:821

The high speed centrifuge LM15G with optional rotor for 0.2ml, 0.5ml, 2ml/1.5ml, 5ml micro centriuge tube and 10ml,15ml,50ml,100ml centrifuge tube. Frequency conversion ,brushless motor without maintenance, control speed 200-~18000rpm ± 20rpm;Max.RCF 23470xg.Centrifuge speed and RCF step increase 10rpm/10×g, timing control 1-99 minutes or 1-59sec. Accuracy±1 seconds. Instantaneous centrifugal, press the(flash)button which can be centrifuged faster. Automatically record the last experimental value. Separated button for rpm/rcf transformation . easy to adjust and check relative centrifugal force in real time widely used in medical laboratory, industrial laboratory, biochemical and molecular biology researching. Also more pronounced in the genetic,protein nucleic acid and PCR field. ✦【QUALITY CERTIFICATE】ISO 13485 quality system and CE certificate to sure the quality.

Inquire
  • Specifications



LM15G high speed centrifuge

Product Introduction

Tabletop high speed micro-centrifuge which functions are powerful, highly commonality and handy for operation, The centrifuge which use the latest controller system which will be reliable quality and superior performance . It widely used in medical laboratory, industrial laboratory , biochemical and molecular biology researching . Also more pronounced in the geneticprotein nucleic acid and PCR field .



Advantage

1.Use the advanced and reliable Infineon vector sine wave drive control system. Accurate controlled the speed ,time and RCF.


2.Frequency conversion ,brushless motor without maintenance, control speed 10015000rpm ± 20rpm


3.Centrifuge speed and RCF step increase 10rpm/10×g, timing control 1-99 minutes or 1-59sec. Accuracy±1 seconds. Instantaneous centrifugal, press theflashbutton which can be centrifuged faster. Automatically record the last experimental value


4.The master device and the rotor which use the high strength material ,it is nice sealing property and high temperature sterilization performance .

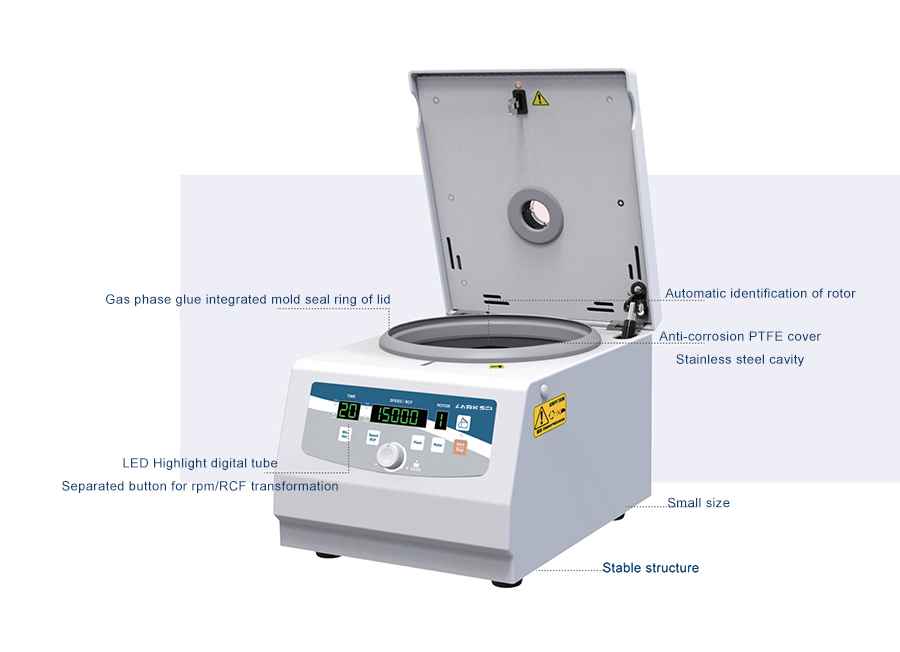

5.PTFE cover Stainless steel cavity and solid construction, suitable for continuous use, electronic lock, easy to open lid, automatic locking lid to ensure safety.


6.Large LED display showing which can be clear the operating parameter, separated button for rpm/rcf transformation . easy to adjust and check relative centrifugal force in real time


7.Single knob controlled can be fast changed parameter


8.The centrifuge have lid protection , excessive speed and imbalance detection system, Which can be real-time monitoring , ensure the centrifuge safe operation, when appear the imbalance sound signal reminder and stop operation at the same time ,LED display show the error code.


9.Forced ventilation cooling and excellent air heat exchange technology can significantly and effectively reduce the increase in the temperature of the rotor.

Automatic opened the lid when finish the operating ,The samples will not overheating and discharge the sample more convenient


10.The isolation layer outside the centrifugal cavity can fully absorb noise and reduce vibration.


11.The rotor have the sealed cover , it will be prevent the contamination from sample


Main machine Technical data

Part.No.

LM15G

Input voltage

AC220V/5060Hz/ AC120V

Input power[W]

450W

Max. Capacity[ml]

50(5ml×10)

Speed Range[r/min.]

100~15000rpm/step increase 10rpm

Speed Accuracy

±20rpm

Max.RCF [×g]

20375×g/step increase10×g

Motor

Maintenance-free brushless inverter motor

Timing Control

1-99min/1-9secAccuracy ±1sec

Drive control system

Infineon vector sine wave drive control system

Digital Display

LED

Operation method

Physical button

Lid lock method

Mechanical pressing lock,electronically controlled open

Max.acceleration time[sec]/Speed up gear

18s/9 gears

Max.Deceleration time[sec]/Speed down gear

20s/10gears0 gears for stop free

Dimensions:D×W×H

280×360×250

Weight without rotor [Kg]

17

Noise level at max. speed(apprex)

60dB(A)

Allowable ambient temperature/relative humidity

+5~40/80%

Protection class

IP20

Interference suppression standard

EN 61010-1,EN 61010-2-020,EN 61326-1,

EN 61010-3-2/A2

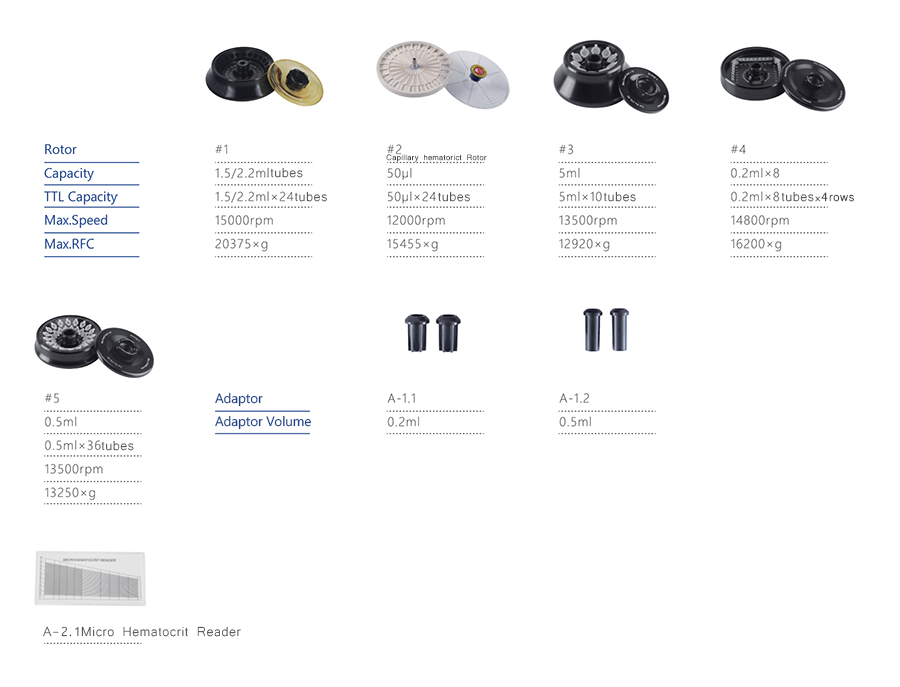

Rotor Technical data

Part.No.

Part Name

Capacity ML×No.

Max.Speed

r/min.

Max. RCF ×g

Tube type

LM15G-A-1

#1

1.5/2.2×24

15000

20375

PP conical bottom with cap

LM15G-A-2

#2

Capillary tube×24

12000

15455

Dia.1.5mm×L75mm

LM15G-A-3

#3

5×10

13500

12920

PP round bottom with cap

LM15G-A-4

#4

PCR 0.2×8×4

14800

16200

PP conical bottom with cap

LM15G-A-5

#5

0.5×36

13500

13250

PP conical bottom with cap
