Multi Use Vortex Mixer X6 200-3000rpm

Booking:669

The Multi Use Vortex Mixer X6 is ideal for tube,centrifuge tube and flask. 200-3000rpm, two ways of safety operation--Inching ,continuous. Photoelectric induction technology for inching, no need to press down. Counting and count down timing function to make the experiment more accuracy. brushless DC motor and fixture automatic distinguish for safety using.

Inquire
  • Specifications


X6

X6 Vortex Mixer

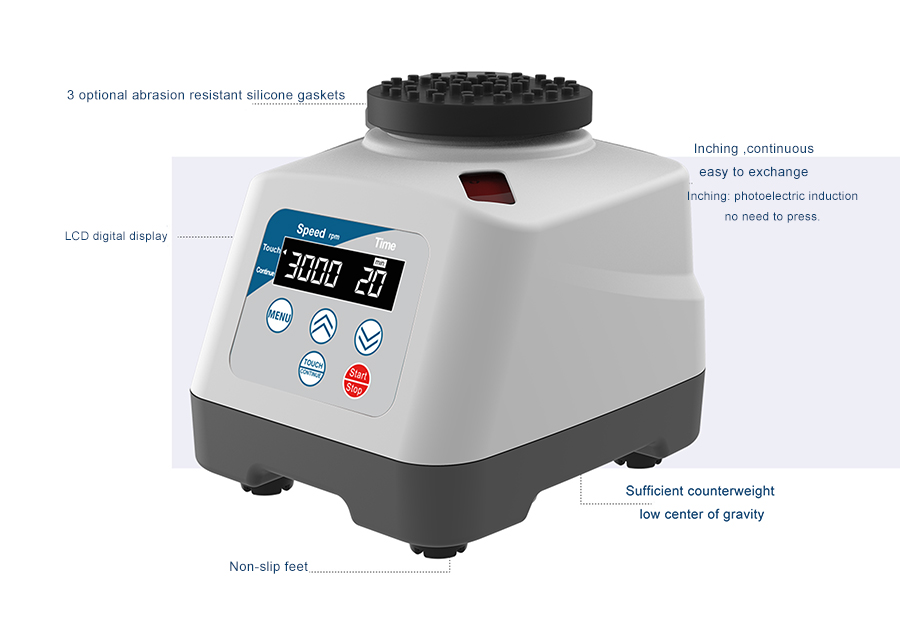

With advanced design concept and manufacturing technology. M6 Vortex Mixer Come with aesthetic appearance as well as the compact structure. High versatility, simple operation to sure the liquid, liquid-solid, powder mixing efficiently



Advantage



1. wo ways of safety operation--Inching ,continuous. Easy to exchange.

Counting and count down timing function to make the experiment more accuracy

2. ny liquid or powder can be mixed completed with high speed, high efficiency and thoroughness within the shortest time

3. Perfect body structure optimization design. Sufficient counterweight and Centric balance piece designing Provides a stable and quiet working platform for various oscillating mixing



4. ST intelligent analysis and processing platform can sensitively respond to the various modes work requirements. Equipped with fast processing chip set and electronic sensing technology, intelligent control of speed, time and working mode



5. The permanent magnet DC motor with over-temperature protection which is not easy to heat up. It ensure long-term trouble-free operation under high-speed mixing. No more extra accessories, more powerful lower noise.





Technical data


Part.No.

X6

Input voltage

DC24V

Input power[W]

20W

Motor

DC24V permanent magnet motor

Speed Control

PWM Stepless speed control

Operation

INCHINGPhotoelectric induction /continuous working

Power fuse

PPTC/Self-recovery fuse/ no need change

Maximum load

1.0Kg

Speed [r/min.]

200-3,000r/min.±5%

Orbit [mm]

4.5

Oscillation mode

Circumferential

Display

LCD

Timing Control

1S-999min/Countdown/inching count

Size[mm]

127×147×128mm

Weight[kg]

3.5kg

Noise by Max.Speed

48dB(A)

Fastest acceleration time [sec]

3s

Fastest deceleration time[sec]

3s

Allowable ambient temperature/relative humidity

+5~40/80%

Protection class

IP20

Interference suppression standard

EN 61010-1,EN 61010-2-020,EN 61326-1,

EN 61010-3-2/A2
