Low Speed Refrigerated Centrifuge LM500R Swing Rotor 200-6000rpm,-20℃~+40℃
The Refrigerated Centrifuge LM500R with wide option of swing rotors and adapters for 3/5/7ml,10/15ml,50ml,100ml centrifuge tubes,5ml blood collection tube, microplate,deep well plate. Angle rotor for 10/15ml,50ml centrifuge tubes. Max.RCF 5150×g/step increase10×g, It widely used in Medical clinical biochemistry, hematology, immunology, clinical research,molecular biology research and routine analysis in industrial laboratories as well as in the genetic,protein nucleic acid and PCR field .Fast pre-cooling function with imported refrigeration compressor unit/R134a Eco-friendly refrigerant. PID digit temperature control. The cooling effect is faster and more accurate. ✦【QUALITY CERTIFICATE】ISO 13485 quality system and CE certificate to sure the quality.
- Specifications
LM500R
Product Introduction
M500R Low Speed Refrigerated centrifuge which functions are powerful, highly commonality and handy for operation.The centrifuge which use the latest controller system which will be reliable quality and superior performance. It widely used in Medical clinical biochemistry, hematology, immunology, clinical research,molecular biology research and routine analysis in industrial laboratories. Also more pronounced in the genetic、protein nucleic acid and PCR field .

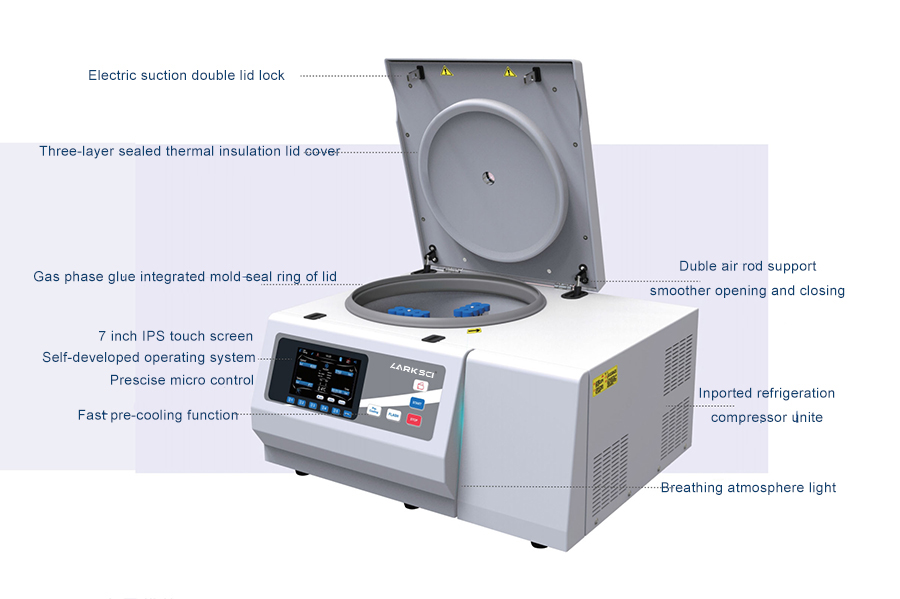

Advantage
1.Smaller footprint, save space in the laboratory
2.Wide option of rotors and adapters for all commonly used centrifuge tubes，vacuum blood tube
3.Imported refrigeration compressor unit/R134a Eco-friendly refrigerant. PID digit temperature control.The cooling effect is faster and more accurate
4.Temperature keeping at -4℃/+4℃ by the Max RPM
5.Fast pre-cooling function with independent Pre-Cooling buttons on the panel
It can reach 4℃ in a very short time at room temperature
6.auto-tuning temperature control function in different environments, no need human intervention
7.Automatic rotor recognition and unbalance detection to sure centrifugal safety
8.Separate Flask button for instantaneous centrifugal, Press to working
9.Electric suction double lid lock design,Quickly lid closed with one touch,quiet and safety
10.Double air rod support makes centrifuge lid opening and closing smoother,more lower opening height
11.10 built-in storage programs/5 panel shortcut program, more convenient
2.PTFE cover Stainless steel centrifuge cavity which can resist corrosive samples centrifugal
3.The seal ring of lid cover is formed by an imported rubber integrated mold
14.7 inch IPS full view 16 million chroma true color LCD display. Brightness adjustable to meet health requirements
15. External USB2.0 interface is convenient for system upgrade and experimental data download
16. Built-in start timing and stable timing function which can effectively calculate the centrifugal efficiency
17. A variety of downtime music ringtones and duration of music and prompt tone can be adjusted.Make the experiment more comfortable
18. The display interface supports Chinese and English menu switching
19.Breathing atmosphere light installed to make your experiment no longer boring
Main machine Technical data
|
Part.No. |
LM500R |
|
Input voltage |
AC220V/50～60Hz |
|
Input power[W] |
650W |
|
Max. Capacity[ml] |
480ml(15ml×32) |
|
Speed Range[r/min.] |
200~6000rpm/step increase 10rpm |
|
Speed Accuracy |
±20rpm |
|
Max.RCF [×g] |
5150×g/step increase10×g |
|
Static temperature setting range |
-20℃~+40℃/step increase0.5℃/Display accuracy 0.1℃/control accuracy±2℃ |
|
Max.Load/Temperature control at Max. speed |
-12℃~+40℃/Display accuracy0.5℃/control accuracy±2℃ |
|
Motor |
Maintenance-free brushless inverter motor |
|
Timing Control |
1-99hrs/1-59min/1-59sec；accuracy±1sec |
|
Drive control system |
Infineon vector sine wave drive control system |
|
Digital Display |
7 inch IPS full view 16 million chroma true color LCD display/Resolution 1024×600dpi |
|
Operation method |
multi touch+Physical button |
|
Store program |
10 built-in storage programs/5 panel shortcut program/equipped with NORAML button |
|
Lid lock method |
Electronic automatic suction double lock |
|
Max.acceleration time[sec]/Speed up gear |
30s/9gears |
|
Max.Deceleration time[sec]/Speed down gear |
25s/10gears，0gears free stop |
|
Refrigeration Compressors/Refrigerant |
Imported SECOP®with 3C certificate/R134a |
|
Dimensions:D×W×H |
560×680×376 |
|
Weight without rotor [Kg] |
76 |
|
Noise level at max. speed(apprex) |
≤65dB(A) |
|
Protection class |
IP20 |
|
Allowable ambient temperature/relative humidity |
+5~40℃/80% |
|
Interference suppression standard |
EN 61010-1，EN 61010-2-020，EN 61326-1，EN 61010-3-2/A2 |

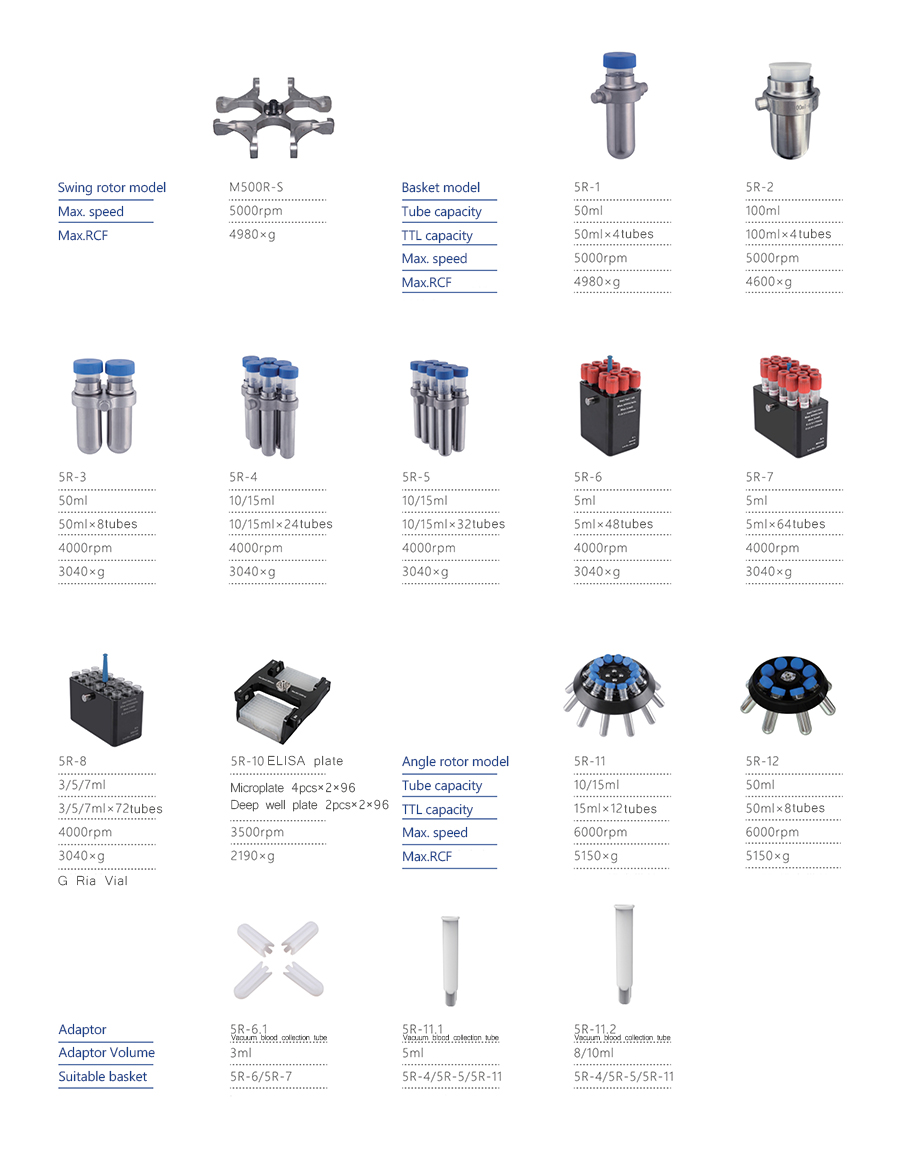

Rotor Technical data
|
Part.No. |
Part Name |
capacity ML×No. |
Max. Speed rpm/min. |
Max. RFC×g |
Tube specification |
|
LM500R-S-1 |
5R-1 |
50×4 |
5000 |
4980 |
PP round/conical bottom with cap |
|
LM500R-S-2 |
5R-2 |
100×4 |
5000 |
4600 |
PP round bottom with cap |
|
LM500R-S-3 |
5R-3 |
50×8 |
4000 |
3040 |
PP round/conical bottom with cap |
|
LM500R-S-4 |
5R-4 |
8/10/15×24 |
4000 |
3040 |
Blood collection tube/Urine Sediment tube/PP round/conical tube |
|
LM500R-S-5 |
5R-5 |
8/10/15×32 |
4000 |
3040 |
Blood collection tube/Urine Sediment/PP round/conical tube |
|
LM500R-S-6 |
5R-6 |
3/5×48 |
4000 |
3040 |
Blood collection tube |
|
LM500R-S-7 |
5R-7 |
3/5×64 |
4000 |
3040 |
Blood collection tube |
|
LM500R-S-8 |
5R-8 |
3/5/7×72 |
4000 |
3040 |
G Ria Vial |
|
LM500R-S-10 |
5R-10 |
Microplate 4pcs×2×96 Deep well plate 2pcs×2×96 |
3500 |
2190 |
|
|
LM500R-A-11 |
5R-11 |
15×12 |
6000 |
5150 |
PP round/conical bottom with cap |
|
LM500R-A-12 |
5R-12 |
50×8 |
6000 |
5150 |
PP round/conical bottom with cap |
