Fix Speed Mini Centrifuge
✦【4000rpm,7000rpm, 4000/7000rpm, 10000rpm, 12000rpm CONSTANT SPEED】: Low noise is less than 50dB, Max. RCF of 8850 x g, 100-240VAC, 50/60Hz input power. ✦【2 REPLACEMENT ROTORS 】: Angle rotor for 0.2/0.5/1.5/2.0ml x 8pcs and PCR rotor for 0.2mL×32pcs PCR tube or 0.2mL×4 PCR 8 strips;Quick change buckle allows for very easy rotor change without tools. ROTORS CAN BE STERILIZED. ✦【SIMPLE OPERATION】 :Fully transparent spherical top cover automatically working while press down the lid and stop when opening the lid. ✦【RELAIABLE QUALITY】: Benchtop microcentrifuge adopts the POWERFUL MOTOR with very low noise. Smooth operation, durable, safe and reliable, ENCLOSED DESIGH reduces the risk of liquid splashing into the equipment. ✦【QUALITY CERTIFICATE】ISO 13485 quality system and CE certificate to sure the quality.
- Specifications
MHC-4K MHC-7K MHC-10K MHC-12K MHC-4K/7K
Product Introduction
Mini centrifuge adopts the international advanced design concept and manufacturing technology, It come with aesthetic appearance as well as the compact structure. High versatility, simple operation and with both "smooth start" and "smooth braking" functional characteristics
It is suitable for micro tube filtering and fast centrifugation, micro blood cell separation, microbial sample processing, PCR experiment partition centrifugation. It can be prevent the liquid to shop in the tube wall.
It is an ideal centrifuge for small sample which need to do centrifugal.
Advantage
1.Adopt advanced and reliable PI high-frequency full-range wide-range power control scheme.
Comply with AC100-250V/50/60Hz input power. Accuracy control voltage, current, speed and relative centrifugal force to ensure the constant speed not change by change of voltage and loading.
2.Unique rotor snap-on installation design to replace the rotor without any tool. It makes experimenter replace the rotor more convenient and fast.3.High-strength host and rotor materials which can resist all kinds of chemical corrosion.
The Rotor can be with high temperature sterilization.
4.Equipped with high-efficiency DC permanent magnet motor, RSS vibration absorption material,the centrifuge run more smoothly.Spatial-rotation for 360°arc shape,without any corner. low windage resistance, with slow temperature increase.
Lower noise ≤50dB(A)
5.Faster acceleration/deceleration rate,complete the experiment requirement in a shorter time.
Reach over 95% of rated speed within 3s acceleration
6.two types of deceleration,Free stop by press the lid button ≤1n 15 seconds, the cover braking by lid open fully ,time only should be ≤ 3 seconds
Main machine Technical data
the cover braking time only 3 seconds

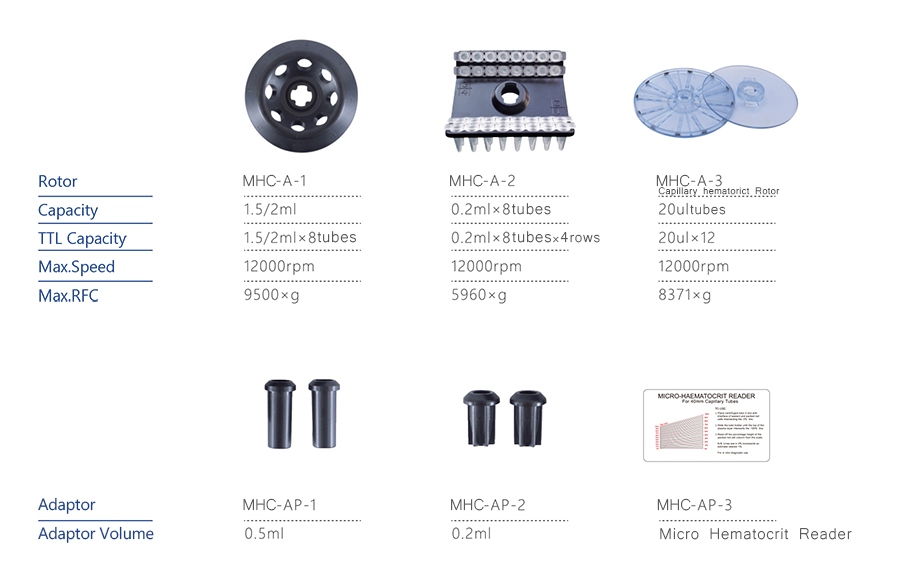

Rotor Technical data
Part.No. |
Rotor.No. |
capacity ML×No. |
Max. Speed rpm/min. |
Max. RFC×g |
MHC-A-1 |
#1 |
2/1.5/0.5/0.2ml×8 |
4000 |
990 |
MHC-A-2 |
#2 |
0.2ml×8×4 |
4000 |
536 |
MHC-A-1 |
#1 |
2/1.5/0.5/0.2ml×8 |
7000 |
2910 |
MHC-A-2 |
#2 |
0.2ml×8×4 |
7000 |
1643 |
