Air-Cooled Lower Speed Centrifuge LM500D 200-6000rpm
The Air-Cooled Lower Speed Centrifuge LM500D with wide option of swing rotors and adapters for 5ml blood collection tube. 50/15ml,50/5ml, 15ml,100ml 250ml centrifuge tubes, Angle rotor for 10/15ml, 50ml. 200-6000rpm,Max.RCF 5150×g/step increase10×g,Timing control 1-99hrs or 1-59min or 1-59sec. 5 inch IPS full view 16 million chroma true color LCD display. Real-time display of speed up and down. It is more convenient for fast adjustment which fully meets various centrifugal needs. Instantaneous centrifugal,(flash)button which can be centrifuged faster. Automatically record the last experimental value.10 built-in storage programs/5 panel shortcut program, more convenient. ✦【QUALITY CERTIFICATE】ISO 13485 quality system and CE certificate to sure the quality.
- Specifications
LM500D
Product Introduction
The M400D Air –Cooled lower speed centrifuge which the functions are powerful , highly commonality and handy for operation. The centrifuge use the latest controller system which will be reliable quality and superior performance. It widely used in medical laboratory ,industrial laboratory , biochemical and molecular biology researching

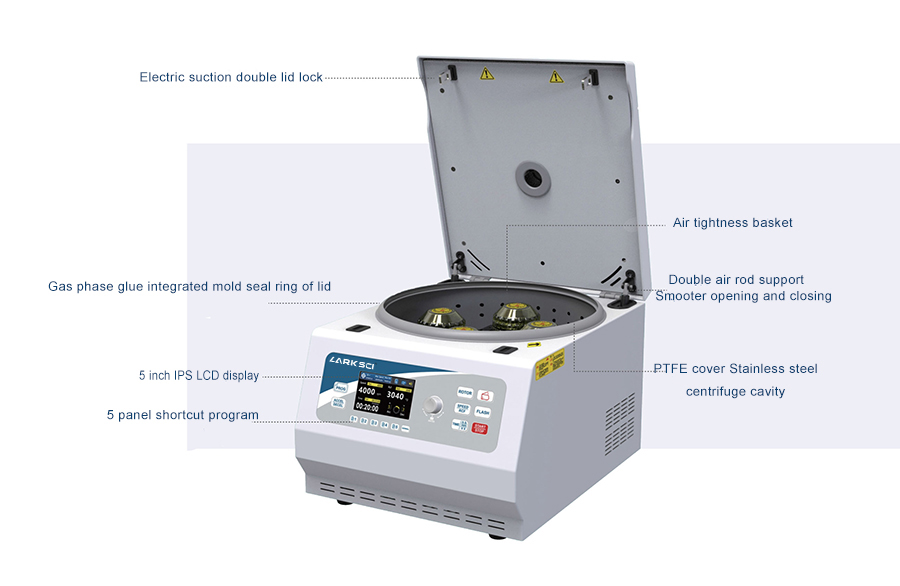

Advantage
1. Smaller footprint, save space in the laboratory

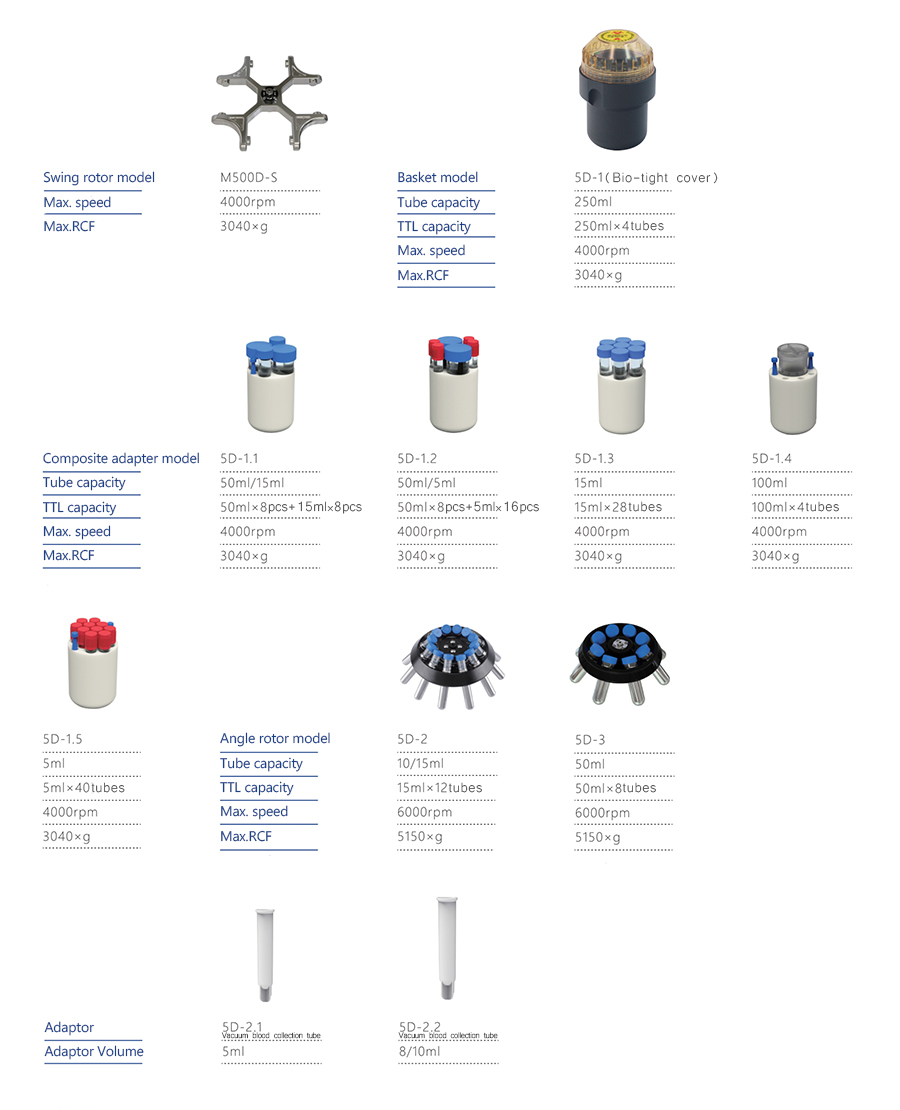

2. Wide option of rotors and adapters for all commonly used centrifuge tubes,vacuum blood tube
3. Air tightness rotor for dangerous sample centrifugual. especially for biological samples that easily form aerosols such as viruses, blood samples, pathogenic bacteria, etc
4. Automatic rotor recognition and unbalance detection to sure centrifugal safety
5. Separate Flask button for instantaneous centrifugal, Press to working
6. Electric suction double lid lock design,Quickly lid closed with one touch,quiet and safety
7. Double air rod support makes centrifuge lid opening and closing smoother,more lower opening height
8. 10 built-in storage programs/5 panel shortcut program, more convenient
9. PTFE cover Stainless steel centrifuge cavity which can resist corrosive samples centrifugal
10. The seal ring of lid cover is formed by an imported rubber integrated mold
11. 5 inch IPS full view 16 million chroma true color LCD display. Brightness adjustable to meet health requirements
11. External USB2.0 interface is convenient for system upgrade and experimental data download
12. Built-in start timing and stable timing function which can effectively calculate the centrifugal efficiency
13. A variety of downtime music ringtones and duration of music and prompt tone can be adjusted.
Make the experiment more comfortable
14. The display interface supports Chinese and English menu switching
Main Machine Technical data
Part.No. |
LM500D |
Input voltage |
AC220V/50~60Hz/AC120V |
Input power[W] |
650W |
Max. Capacity[ml] |
1000(250ml×4) |
Speed Range[r/min.] |
200~6000rpm/步增10rpm |
Speed Accuracy |
±20rpm |
Max.RCF [×g] |
5150×g/step increase10×g |
Motor |
Maintenance-free brushless inverter motor |
Timing Control |
1-99hrs/1-59min/1-59sec;accuracy±1sec |
Drive control system |
Infineon vector sine wave drive control system |
Operation method |
Physical button |
Digital Display |
5 inch IPS full view 16 million chroma true color LCD display/Resolution 800×480dpi |
Store program |
10 built-in storage programs/5 panel shortcut program/equipped with NORAML button |
Lid lock method |
Mechanical pressing lock,electronically controlled open |
Max.acceleration time[sec]/Speed up gear |
30s/9gears |
Max.Deceleration time[sec]/Speed down gear |
25s/10gears,0gears free stop |
Dimensions:D×W×H |
418×516×338 |
Weight without rotor [Kg] |
37 |
Noise level at max. speed(apprex) |
≤65dB(A) |
Protection class |
IP20 |
Allowable ambient temperature/relative humidity |
+5~40℃/80% |
Interference suppression standard |
EN 61010-1,EN 61010-2-020,EN 61326-1,EN 61010-3-2/A2 |
