Microcentrifuge Variable Speed Multiuse with Digital Display

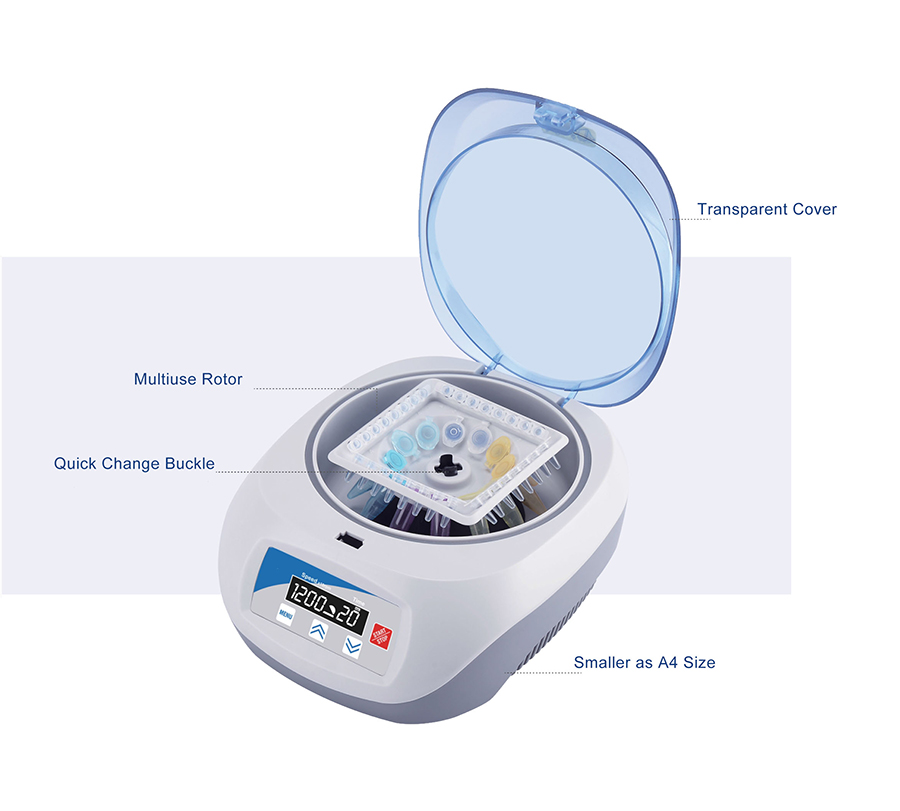

The speed adjustable digital display microcentrifuge is perfect for quick spin down with 2 speed option. 500-7000rpm and 500-12000rpm. the multi-rotor can be for 12x1.5ml/2ml microtube and 8x0.2mlx4 PCR strips. The other rotor can be for 12x 0.2ml PCR strips. Reliable and durable DC permanent magnet motor. Wide speed range 500-12000rpm,accuracy ±9%. RPM step increase 500rpm. Timing control 1-99min or 1-59sec.【QUALITY CERTIFICATE】ISO 13485 quality system and CE certificate to sure the quality.
- Specifications
Advantage
1,Adopt advanced and reliable PI high-frequency full-range wide-range power control scheme.Comply with AC100-250V/50/60Hz input power.
ST16 bit MCU/PWM/ Speed Adjustable system to control the voltage, current, speed and centrifugal time more accuracy to suit the harsh environment,Extend the service life of the motor and lower the electromagnetic noise.
2,Reliable and durable DC permanent magnet motor. Wide speed range 500-12000rpm,accuracy±9%. RPM step increase 500rpm. Timing control 1-99min or 1-59sec.
3,Faster acceleration/deceleration rate,complete the experiment requirement in a shorter time.
4,High-strength host and rotor materials which can resist all kinds of chemical corrosion.The Rotor can be with high temperature sterilization.
5,Unique rotor snap-on installation design to replace the rotor without any tool. It makes experimenter replace the rotor more convenient and fast.
6,The designed new multi use rotor compatible with a variety of tubes.It meets the basic needs of experiment by rotor not replace.
7,RSS vibration absorption material,the centrifuge run more smoothly.Spatial-rotation for 360°arc shape,without any corner. low windage resistance, with slow temperature increase.Lower noise 7G≤58dB、12G≤60dB
8.Lid protection, overspeed and imbalance detection system. It can monitor the centrifugation process in real time to ensure the safe operation of the instrument.
While operation is over, error or imbalance occurs, the centrifuge operation stops and sound signal prompts. LCD diaplay the result code.
Main machine Technical data
|
Part.No. |
MUC-7 |
MUC-12 |
|
Input voltage |
AC100-250V/50/60Hz |
|
|
Power fuse |
PPTC/Self-recovery fuse/no need to replace |
|
|
Input power[W] |
30W |
45W |
|
Drive control system |
ST16 bit MCU/PWM/ Speed Adjustable |
|
|
Display |
White LCD on black background |
|
|
Motor |
DC24V/DC permanent magnet motor |
|
|
Timing Control |
1-99min.1-59sec. |
|
|
Speed [r/min.] |
500～7000rpm±5% |
500～12000rpm±6% |
|
Speed Increase |
500rpm |
|
|
Max RCF[×g] |
3286×g |
9660×g |
|
Dimensions:D×W×H |
194×229×120 |
|
|
Weight |
1.6 |
|
|
Noise level at max. speed(apprex) |
≤58dB(A) |
≤60dB(A) |
|
Acceleration time [sec] |
≤7s |
≤13s |
|
Deceleration time [sec] |
≤10s |
≤16s |
|
Protection class |
IP20 |
|
|
Interference suppression standard |
+5-40℃/80% |
|
|
Interference suppression standard |
EN 61010-1,EN 61010-2-020,EN 61326-1,EN 61010-3-2/A2 |
|

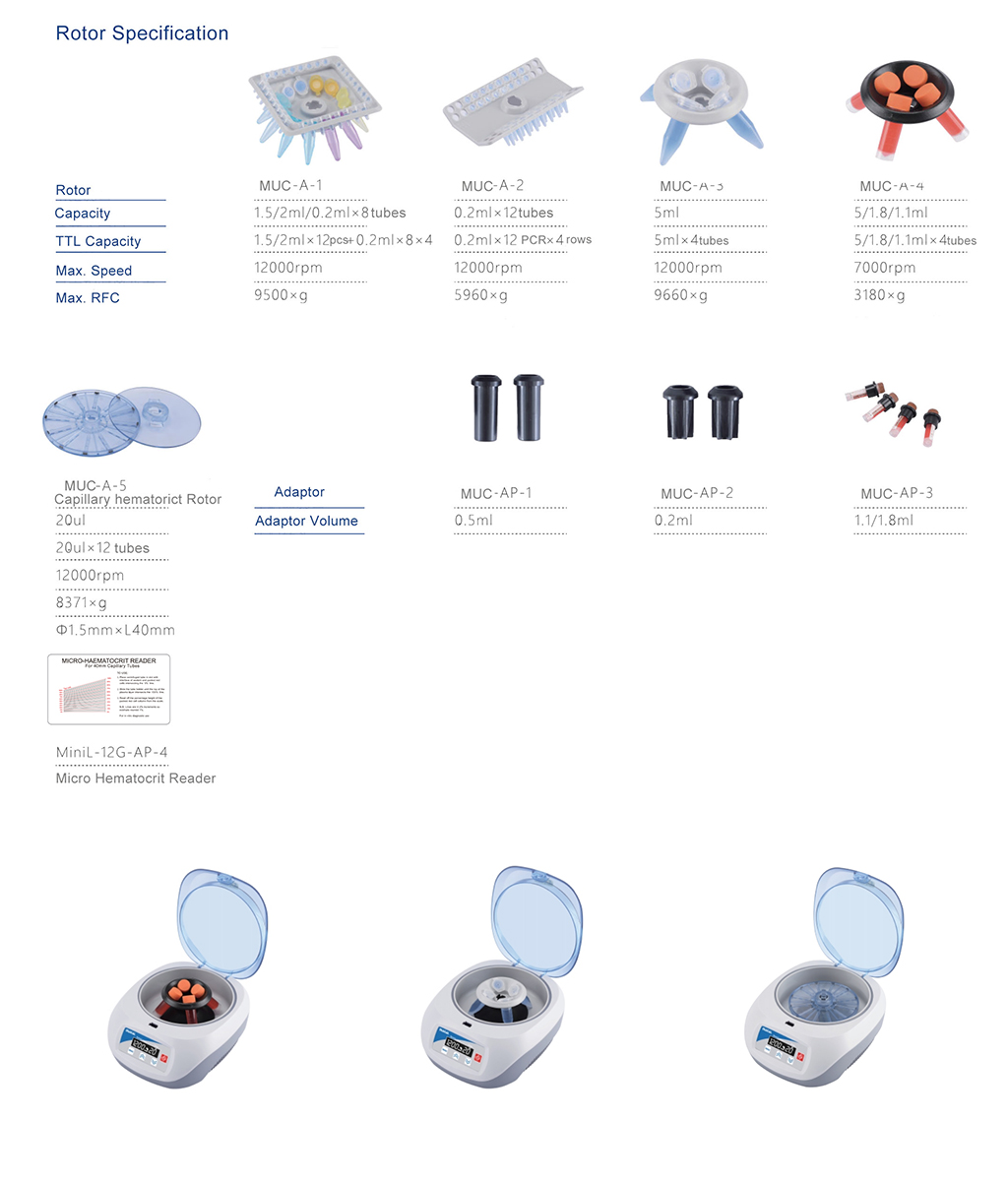

Rotor Technical data
|
Part.No. |
Rotor.No. |
capacity ML×No. |
Max. Speedrpm/min. |
Max. RFC×g |
|
MinilL-7G-A-1 |
#1 |
1.5/2×12+PCR0.2×8×4 |
7000 |
3232 |
|
MinilL-7G-A-2 |
#2 |
5×4 |
7000 |
2210 |
|
MinilL-7G-A-3 |
#3 |
PCR0.2×12×4 |
7000 |
3286 |
|
MinilL-7G-A-4 |
#4 |
5/1.8/1.1×4 |
7000 |
3180 |
| MinilL-12G-A-1 | #1 |
1.5/2×12+PCR0.2×8×4 |
12000 | 9500 |
|
MinilL-12G-A-2 |
#2 |
PCR0.2×12×4 |
12000 | 5960 |
|
MinilL-12G-A-3 |
#3 |
5×4 |
12000 | 9660 |
|
MinilL-12G-A-4 |
#4 |
Capillary tube×12 |
12000 | 8371 |
|
MinilL-12G-A-5 |
#5 |
5/1.8/1.1×4 |
7000 | 3180 |
