Multi Functional Vortex Mixer X8 200-3000rpm

Booking:784

The Multi Functional Vortex Mixer X8 is an ideal item for tube,centrifuge tube and ELISA plates oscillation.200-3,000rpm, two ways of safety operation--Inching ,continuous. Counting and count down timing function to make the experiment more accuracy. brushless DC motor and fixture automatic distinguish for safety using.✦【QUALITY CERTIFICATE】ISO 13485 quality system and CE certificate to sure the quality.

Inquire
  • Specifications


X8

X8 Multi functional Vortex Mixer

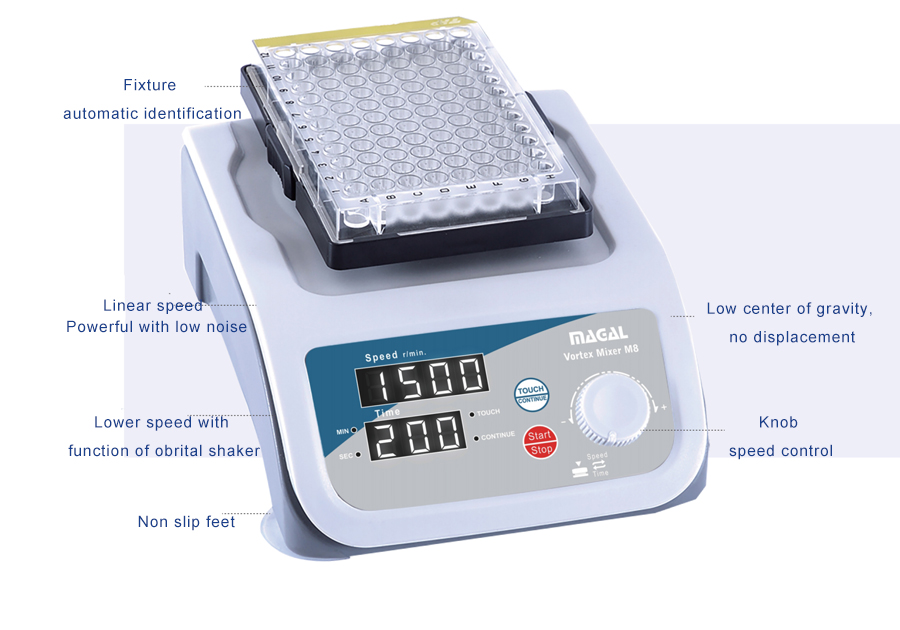

Product Introduction



With advanced design concept and manufacturing technology. M8 Multi functional Vortex Mixer

 Come with aesthetic appearance as well as the compact structure. High versatility, simple operation to suitable for tube,centrifuge tube and ELISA plates oscillation






Advantage



1. ST intelligent analysis and processing platform can sensitively respond to the various modes work requirements. Equipped with fast processing chip set and electronic sensing technology, intelligent control of speed, time and working mode

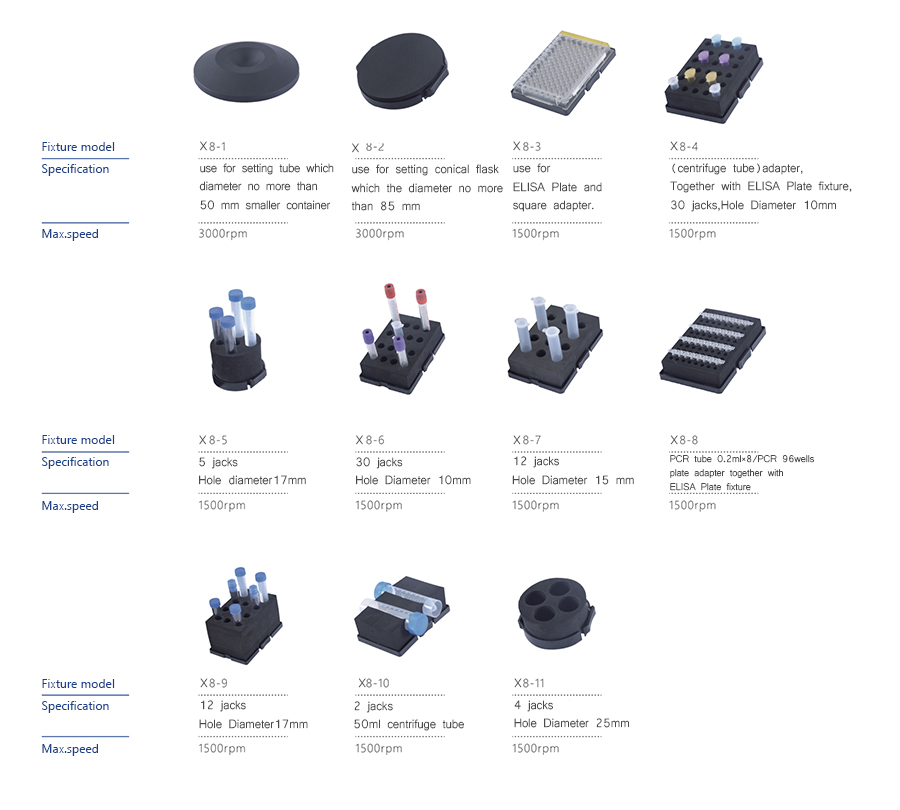

2. Full size of the fixture to meet the needs of test tubes centrifuge tube and plates with different capacities



3. Perfect body structure optimization design. Sufficient counterweight and Centric balance piece designing Provides a stable and quiet working platform for various oscillating mixing



4. The permanent magnet brushless DC motor with over-temperature protection which is not easy to heat up. It ensure long-term trouble-free operation under high-speed mixing. No more extra accessories, more powerful lower noise.



5. wo ways of safety operation--Inching ,continuous. Easy to exchange.

Counting and count down timing function to make the experiment more accuracy

fixture and its speed automatic distinguish for safety using


Technical data

Part.No.

X8

Input voltage

DC24V

Input power[W]

18W

Motor

DC24V permanent magnet motor

Speed Control

PWM Stepless speed control

Operation

INCHINGPressing /continuous working

Power fuse

PPTC/Self-recovery fuse/ no need change

Maximum load

1.5Kg

Speed [r/min.]

200-3,000r/min.±15rpm

Oscillation mode

Circumferential

Orbit [mm]

4.5

Adaptive fixture

automatic distinguish

Display

LED

Timing Control

1S-999min/Countdown/inching count

Dimensions:D×W×H

198×138×67

Weight[kg]

4.1kg

Noise by Max.Speed

45dB(A)

Fastest acceleration time [sec]

3s

Fastest deceleration time[sec]

3s

Allowable ambient temperature/relative humidity

+5~40/80%

Protection class

IP20

Interference suppression standard

EN 61010-1,EN 61010-2-020,EN 61326-1,

EN 61010-3-2/A2
