High Speed Refrigerated Centrifuge LM16R 100-16000rpm -20℃~+40℃
The Refrigerated Centrifuge LM16R with wide option of rotors and adapters for 0.2ml,0.5ml,1.5/2ml,5ml,10ml,15ml,50ml,100ml, centrifuge tubes and capillary tube. Max.RCF 23470×g/step increase10×g, temperature range:-20℃~+40℃,Fast pre-cooling function. It is widely used in medical laboratory, industrial laboratory, biochemical and molecular biology researching in the genetic,protein nucleic acid and PCR field. Imported refrigeration compressor unit/R134a Eco-friendly refrigerant. PID digit temperature control.The cooling effect is faster and more accurate. ✦【QUALITY CERTIFICATE】ISO 13485 quality system and CE certificate to sure the quality.✦【QUALITY CERTIFICATE】ISO 13485 quality system and CE certificate to sure the quality.
- Specifications
LM16R
Product Introduction

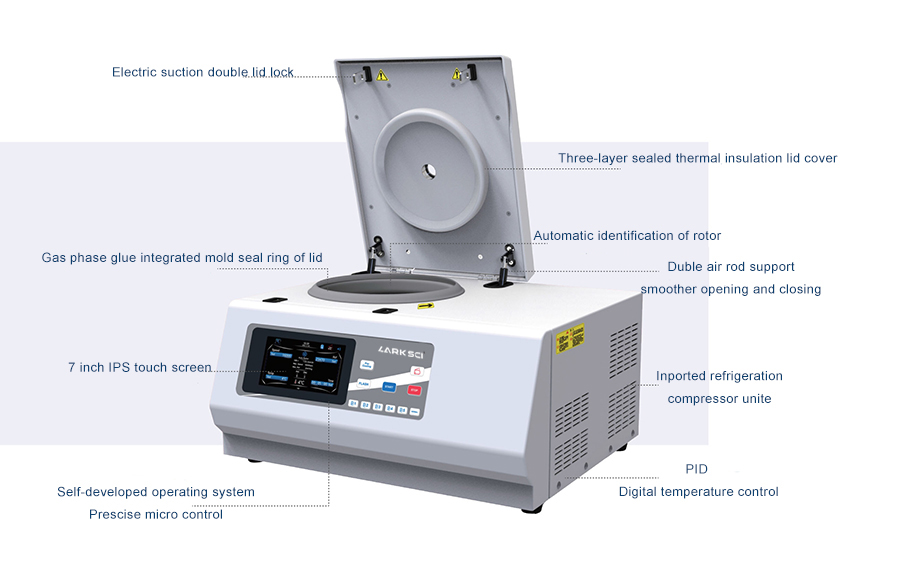

LM16R Tabletop High-speed refrigerated centrifuge which functions are powerful, highly commonality and handy for operation.The centrifuge which use the latest controller system which will be reliable quality and superior performance. It widely used in Medical clinical biochemistry, hematology, immunology, clinical research,molecular biology research and routine analysis in industrial laboratories. Also more pronounced in the genetic、protein nucleic acid and PCR field .
Advantage
1.Smaller footprint, save space in the laboratory

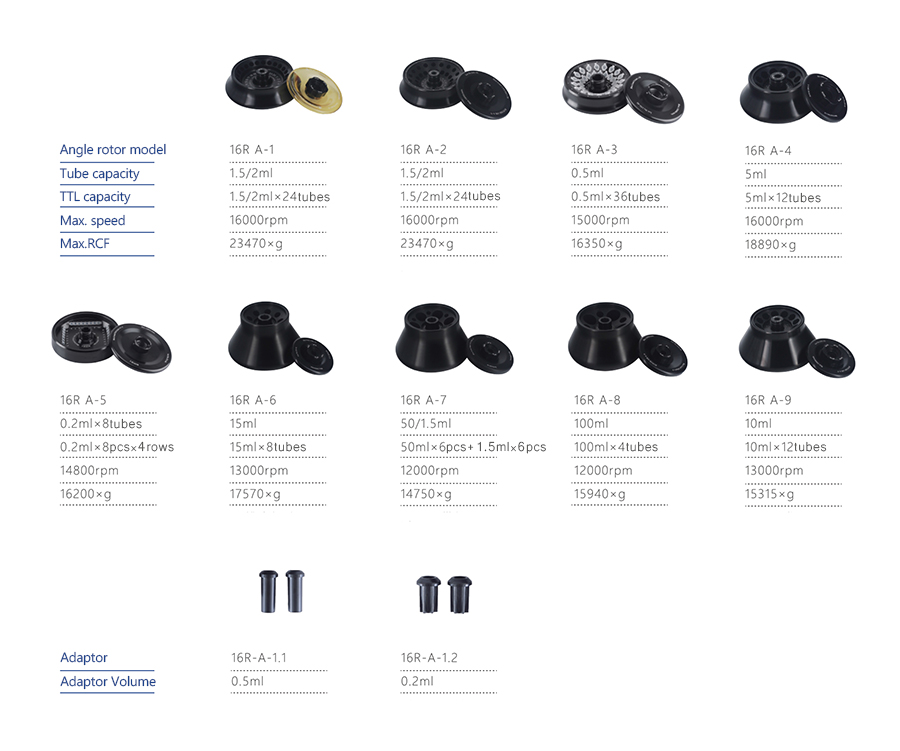

2.Wide option of rotors and adapters for all commonly used centrifuge tubes
3.Imported refrigeration compressor unit/R134a Eco-friendly refrigerant. PID digit temperature control.The cooling effect is faster and more accurate4.Fast pre-cooling function with independent Pre-Cooling buttons on the panel
It can reach 4℃ in a very short time at room temperature
5.auto-tuning temperature control function in different environments, no need human intervention6.Automatic rotor recognition and unbalance detection to sure centrifugal safety
7.Separate Flask button for instantaneous centrifugal, Press to working
8.Electric suction double lid lock design,Quickly lid closed with one touch,quiet and safety
9.Double air rod support makes centrifuge lid opening and closing smoother,more lower opening height
10.built-in storage programs/5 panel shortcut program, more convenient11.PTFE cover Stainless steel centrifuge cavity which can resist corrosive samples centrifugal
12.The seal ring of lid cover is formed by an imported rubber integrated mold
13.7 inch IPS full view 16 million chroma true color LCD display. Brightness adjustable to meet health requirements
14.External USB2.0 interface is convenient for system upgrade and experimental data download
15.Built-in start timing and stable timing function which can effectively calculate the centrifugal efficiency
16.A variety of downtime music ringtones and duration of music and prompt tone can be adjusted.Make the experiment more comfortable
17.The display interface supports Chinese and English menu switching
Main machine Technical data
|
Part.No. |
LM16R |
|
Input voltage |
AC220V/50～60Hz |
|
Input power[W] |
750W |
|
Max. Capacity[ml] |
400(100ml×4) |
|
Speed Range[r/min.] |
100~16000rpm/step increase10rpm |
|
Speed Accuracy |
±20rpm |
|
Max.RCF [×g] |
23470×g/step increase10×g |
|
Static temperature setting range |
-20℃~+40℃/step increase0.5℃/Display accuracy 0.1℃/control accuracy±2℃ |
|
Max.Load/Temperature control at Max. speed |
-12℃~+40℃/Display accuracy 0.5℃/control accuracy±2℃ |
|
Motor |
Maintenance-free brushless inverter motor |
|
Timing Control |
1-99hrs/1-59min/1-59sec；accuracy±1sec |
|
Drive control system |
Infineon vector sine wave drive control system |
|
Operation method |
multi touch+Physical button |
|
Store program |
10 built-in storage programs/5 panel shortcut program/equipped with NORAML button |
|
Display |
7 inch IPS full view 16 million chroma true color LCD display/Resolution 1024×600dpi |
|
Lid lock method |
Electronic automatic suction double lock |
|
Max.acceleration time[sec]/Speed up gear |
18s/9gears |
|
Max.Deceleration time[sec]/Speed down gear |
20s/10gears，0 gears free stop |
|
Refrigeration Compressors/Refrigerant |
Imported SECOP® with 3C certificate/R134a |
|
Dimensions:D×W×H |
485×584×345 |
|
Weight without rotor [Kg] |
60 |
|
Noise level at max. speed(apprex) |
≤60dB(A) |
|
Protection class |
IP20 |
|
Allowable ambient temperature/relative humidity |
+5~40℃/80% |
|
Interference suppression standard |
EN 61010-1，EN 61010-2-020，EN 61326-1，EN 61010-3-2/A2 |
