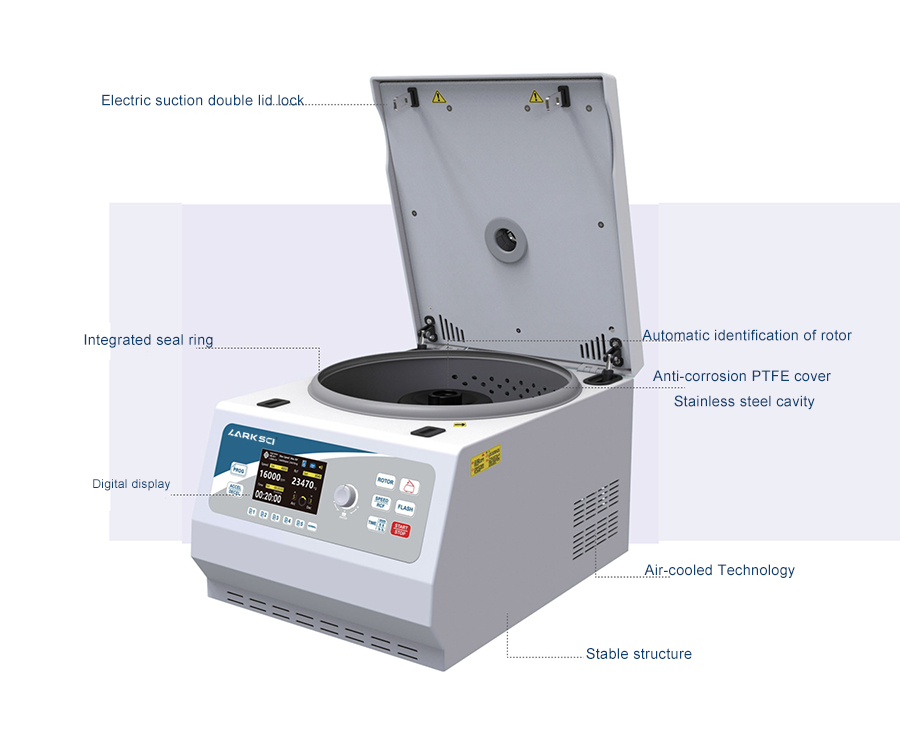

High Speed Centrifuge LM18G100-18000rpm

Booking:917

The High Speed Centrifuge LM18G,Speed Range 100-15000rpm, Max.RCF:20375×g/step increase10×g, with wide option of rotors and adapters for 0.2ml.0.5ml,1.5/2.2ml,5ml centrifuge tubes and capillary tube. PTFE cover stainless steel tank, It is widely used in medical laboratory, industrial laboratory, biochemical and molecular biology researching in the genetic,protein nucleic acid and PCR field. ✦【QUALITY CERTIFICATE】ISO 13485 quality system and CE certificate to sure the quality.

Inquire
  • Specifications



Main machine Technical data

Part.No.

LM18G

Input voltage

AC220V/50~60Hz

Input power[W]

500W

Max. Capacity[ml]

100(100ml×4)

Speed Range[r/min.]

200~18000rpm/step increase10rpm

Speed Accuracy

±20rpm

Max.RCF [×g]

20375×g/step increase10×g

Motor

Maintenance-free brushless inverter motor

Timing Control

1-99hrs/1-59min/1-59sec;accuracy±1sec

Drive control system

Infineon vector sine wave drive control system

Digital Display

5 inch IPS full view 16 million chroma true color LCD display/Resolution 800×480dpi

Operation method

Physical button+ knob

Lid lock method

Mechanical pressing lock,electronically controlled open

Max.acceleration time[sec]/Speed up gear

18s/9 gears

Max.Deceleration time[sec]/Speed down gear

20s/10gears0 gears for stop free

Dimensions:D×W×H

280×360×250

Weight without rotor [Kg]

17

Noise level at max. speed(apprex)

60dB(A)

Allowable ambient temperature/relative humidity

+5~40/80%

Protection class

IP20

Interference suppression standard

EN 61010-1,EN 61010-2-020,EN 61326-1,

EN 61010-3-2/A2

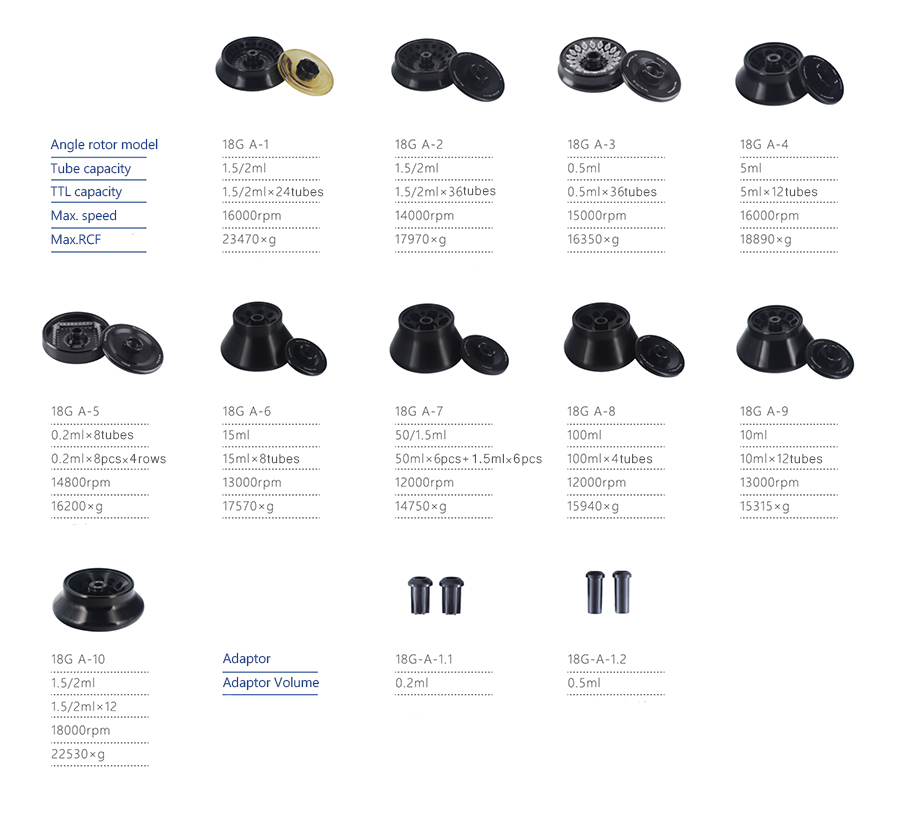

Rotor Technical data

Part.No.

Part Name

capacity  ML×No.

Max. Speed rpm/min.

Max. RFC×g

Tube specification

LM18G-1

18G A-1

1.5/2mlx24 16000 23470xg

PP round/conical bottom with cap

LM18G-2

18G-A2

1.5/2mlx36 14000 17970xg

PP round/conical bottom with cap

LM18G-3

18G-A3

0.5mlx24 15000 16350xg

PP conical bottom with cap

LM18G-4

18G-A4

5ml×12

16000 18890xg

PP round bottom with cap

LM18G-5

18G-A5

PCR strip 0.2mlx8wellsx4rows

14800 16200xg PP conical bottom with cap

LM18G-6

18G-A6

15mlx8 13000 17570xg

PP conical bottom with cap

LM18G-7

18G-A7

50mlx6+2.2mlx6 12000 14750xg

PP conical bottom with cap

LM18G-8

18G-A8

100mlx4 12000 15940xg

PP round bottom with cap

LM18G-9

18G-A9

10mlx12

13000 15315xg

 PP round bottom with cap

LM18G-10

18G-A10

11.5/2.2mlx12

18000 22530xg

PP round/conical bottom with cap
